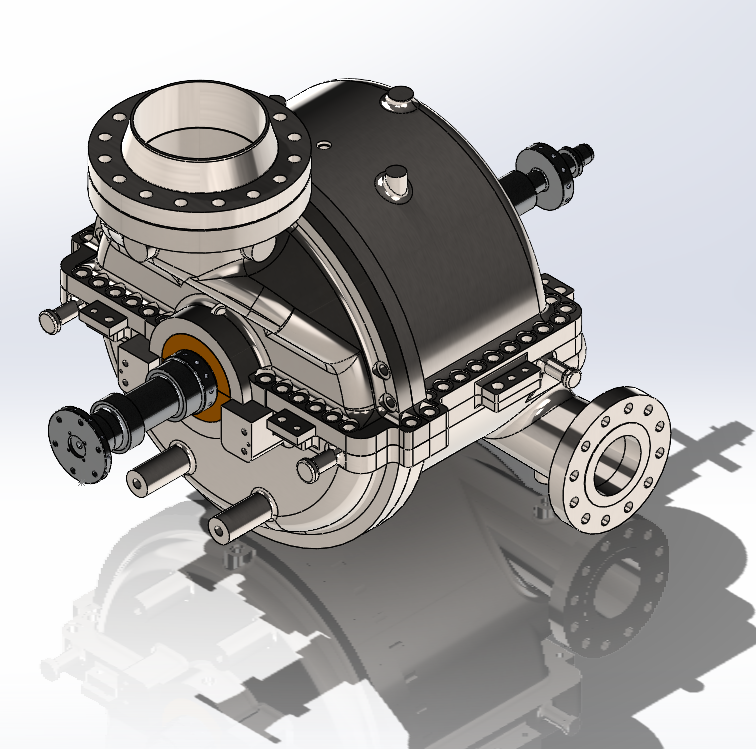

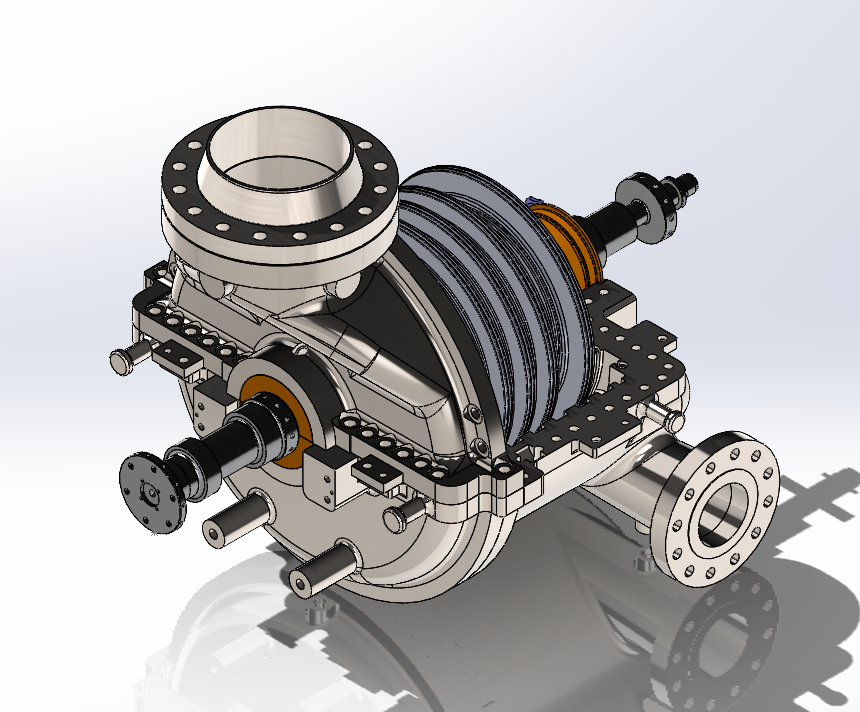

100kW expansion turbine class 250
100kw expansion turbine
تومان contact us
amount/type/quantity
External diameter(mm)
657
Inner core diameter(mm)
558
width(mm)
280
Number of nozzles
8
Type of blades
Inner core material
Type of nozzles
null bearing
type of seal
dry gas seal
Maximum rotational speed(rpm)
3600
gearbox
generator(rpm)
Induction magnet 1500
turbine efficiency (%)
80-85
gas flow(m^3/hr)
Between 3,500 and 5,000
Inlet gas pressure (psi)
250
Exhaust gas pressure (psi)
64
0.21-0.375
Inlet gas temperature (°C)
25-35
Outlet gas temperature (°C)
Dew point temperature (°C)
12
Height(m)
1.3
Nominal capacity (Kwatt)
100
Boiler capacity (BTU/hr)
0
