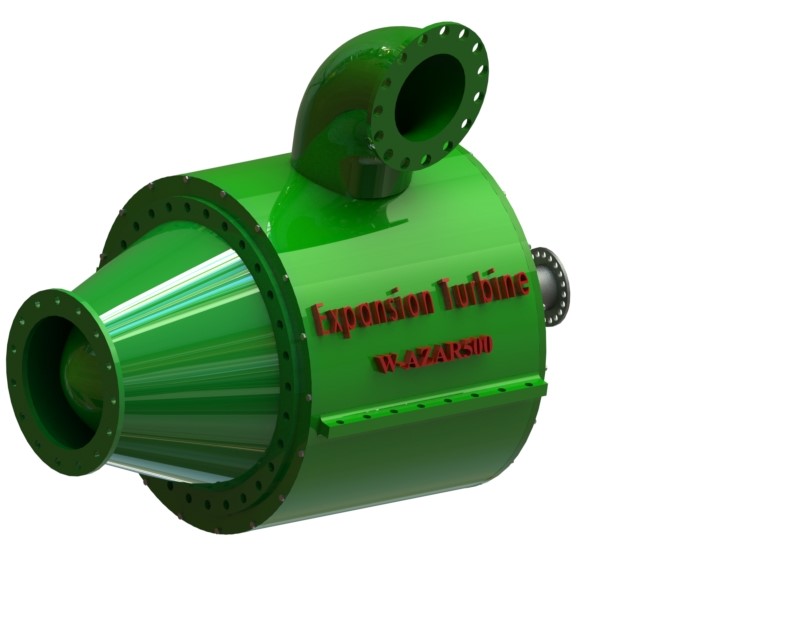

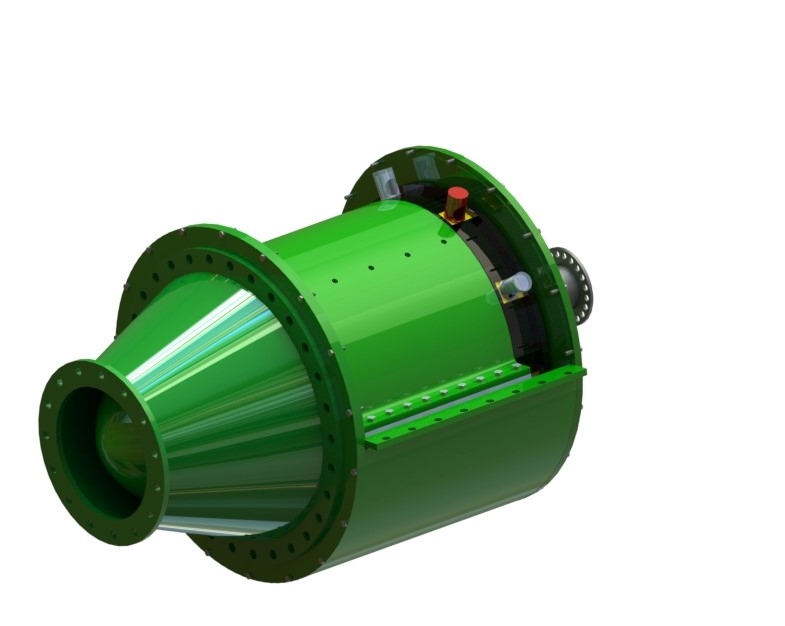

kW 500 expansion turbine

amount/type/quantity

External diameter(mm)

650

Inner core diameter(mm)

400

width(mm)

500

Number of nozzles

32

Type of blades

Aluminum steel

Inner core material

API

Type of nozzles

copper nozzle

null bearing

type of seal

dry gas seal

Maximum rotational speed(rpm)

3500

gearbox

generator(rpm)

Induction magnet 1500

turbine efficiency (%)

80-85

gas flow(m^3/hr)

Between 16,000 and 21,000

Inlet gas pressure (psi)

Between 800 and 1,450

Exhaust gas pressure (psi)

250-300

0.21-0.375

Inlet gas temperature (°C)

70-80

Outlet gas temperature (°C)

24-35

Dew point temperature (°C)

18

Height(m)

1.3

Nominal capacity (Kwatt)

500

Boiler capacity (BTU/hr)

60000
